| | | 摘要： | | 圓弧齒圓柱蝸輪減速機符合部頒標準JB2318-79，達到標準化,、系列化的要求,。適用于冶金、礦山,、起重、運輸,、化工,、建筑等各種機械設備的減速傳動。本系列蝸輪減速機輸入功率范圍在0.4-163KW之間,；輸入扭矩在11-2600kgf·m之間,，輸入軸轉數一般不大于1500轉/分；高速軸可正反兩向運轉,；工作環境溫度低于0℃時,，起動前潤滑油必須加溫到0℃以上。` |
|
|
|

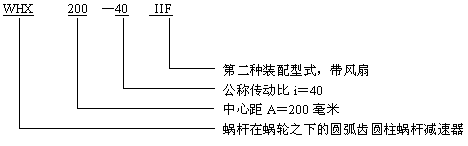

表示方法

|

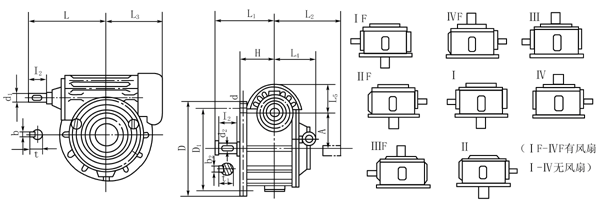

型號
|
a
|
L
|
L1
|
L2
|
L3
|
L4
|
L5
|
H
|
D
|
D1
|
d
|
d1
|
d2
|
b
|
b1
|
t
|
t1
|
I1
|
I2
|
重量
kg
|
| WHC120 |
120 |
245 |
257 |
257 |
218 |
140.5 |
117.5 |
140 |
330 |
290 |
M12 |
35 |
55 |
10 |
16 |
37.8 |
58.5 |
70 |
110 |
95 |
| WHC125 |
125 |
235 |
237 |
237 |
225 |
140 |
125.5 |
140 |
330 |
290 |
M12 |
35 |
55 |
10 |
16 |
37.8 |
58.5 |
58 |
84 |
100 |
| WHC150 |
150 |
294 |
274 |
274 |
255 |
161 |
136.5 |
160 |
400 |
360 |
M16 |
40 |
65 |
12 |
18 |
42.8 |
68.9 |
90 |
110 |
155 |
| WHC160 |
160 |
290 |
292 |
292 |
265 |
161 |
140.5 |
165 |
410 |
370 |
M16 |
40 |
65 |
12 |
18 |
42.8 |
68.9 |
82 |
107 |
163 |
| WHC180 |
180 |
375 |
298 |
298 |
309 |
181.5 |
148 |
185 |
465 |
425 |
M16 |
45 |
70 |
14 |
20 |
49 |
74.2 |
70 |
105 |
190 |
| WHC200 |
200 |
360 |
347 |
347 |
365 |
207 |
168 |
200 |
490 |
450 |
M16 |
50 |
80 |
16 |
24 |
53.5 |
85 |
82 |
132 |
308 |
| WHC210 |
210 |
390 |
377 |
377 |
370 |
212.5 |
174 |
210 |
540 |
490 |
M20 |
50 |
80 |
16 |
24 |
53.5 |
85 |
110 |
170 |
328 |
| WHC250 |
250 |
430 |
372 |
372 |
430 |
211 |
193 |
220 |
610 |
560 |
M20 |
60 |
90 |
18 |
24 |
63.9 |
95 |
105 |
132 |
460 |
| WHC280 |
280 |
485 |
432 |
432 |
485 |
235 |
213 |
240 |
690 |
630 |
M24 |
60 |
100 |
18 |
28 |
63.9 |
105.7 |
105 |
167 |
630 |
| WHC300 |
300 |
540 |
467 |
467 |
520 |
238 |
215 |
270 |
750 |
690 |
M24 |
70 |
100 |
20 |
28 |
74.2 |
105.7 |
140 |
210 |
787 |
| WHC320 |
320 |
525 |
457 |
457 |
525 |
258 |
235 |
260 |
770 |
710 |
M24 |
70 |
110 |
20 |
32 |
74.2 |
116.5 |
105 |
167 |
835 |
| WHC360 |
360 |
565 |
472 |
472 |
565 |
273 |
250 |
280 |
890 |
810 |
M30 |
70 |
120 |
20 |
32 |
74.2 |
126.5 |
105 |
167 |
1045 |
| WHC400 |
400 |
630 |
527 |
527 |
605 |
293 |
270 |
300 |
970 |
890 |
M30 |
80 |
130 |
24 |
36 |
85 |
137.2 |
130 |
202 |
1450 |
| WHC420 |
420 |
680 |
552 |
552 |
665 |
301 |
267.5 |
325 |
1000 |
930 |
M30 |
90 |
140 |
24 |
36 |
97 |
147.2 |
170 |
240 |
1500 |
| WHC450 |
450 |
680 |
562 |
562 |
670 |
321 |
298 |
340 |
1090 |
1000 |
M36 |
80 |
150 |
24 |
40 |
85 |
158.5 |
130 |
202 |
1855 |
| WHC500 |
500 |
730 |
627 |
627 |
725 |
350 |
323 |
370 |
1190 |
1100 |
M36 |
90 |
170 |
24 |
40 |
95 |
178.5 |
130 |
242 |
2420 |
|
|
|
